材料：框葉PBT UL 94V-0等級;玻璃纖維增強塑料

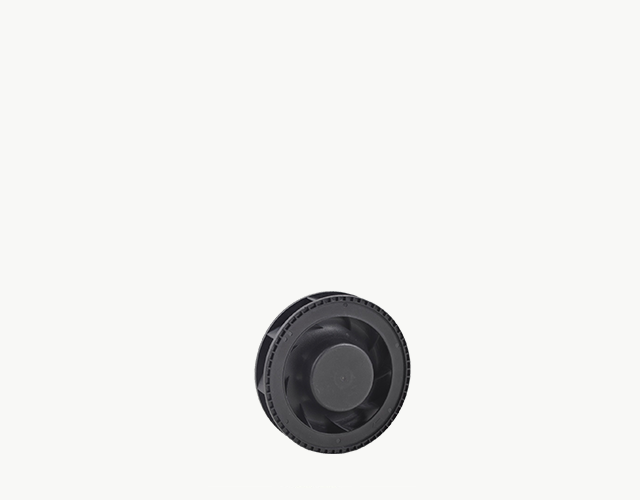

離心風扇
產品描述
Product Description
SIZE:100x25mm
CONSTRUCTION:Glass Fiber reinforced plastic: Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃to +70℃;Sleeve bearing -10℃ to +60℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing
特征曲線
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH?O | dBA | g | ||
| YBH1025X12 | B | 12 | 0.82 | 5000 | 45.63 | 36.18 | 54.18 | 123 |
| YBM1025X12 | B | 12 | 0.42 | 4000 | 36.51 | 23.15 | 49.34 | 123 |
| YBL1025X12 | B | 12 | 0.18 | 3000 | 27.38 | 13.02 | 43.09 | 123 |
| YBH1025X24 | B | 24 | 0.41 | 5000 | 45.63 | 36.18 | 54.18 | 123 |
| YBM1025X24 | B | 24 | 0.21 | 4000 | 36.51 | 23.15 | 49.34 | 123 |
| YBL1025X24 | B | 24 | 0.09 | 3000 | 27.38 | 13.02 | 43.09 | 123 |
| YBH1025X48 | B | 48 | 0.21 | 5000 | 45.63 | 36.18 | 54.18 | 123 |
| YBM1025X48 | B | 48 | 0.11 | 4000 | 36.51 | 23.15 | 49.34 | 123 |
| YBL1025X48 | B | 48 | 0.05 | 3000 | 27.38 | 13.02 | 43.09 | 123 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
