鋁合金及玻璃纖維增強塑料;外框鋁合金,
扇葉PBT UL94V-0等級;罩極式馬達結構;阻抗保護;導線式或插座式;

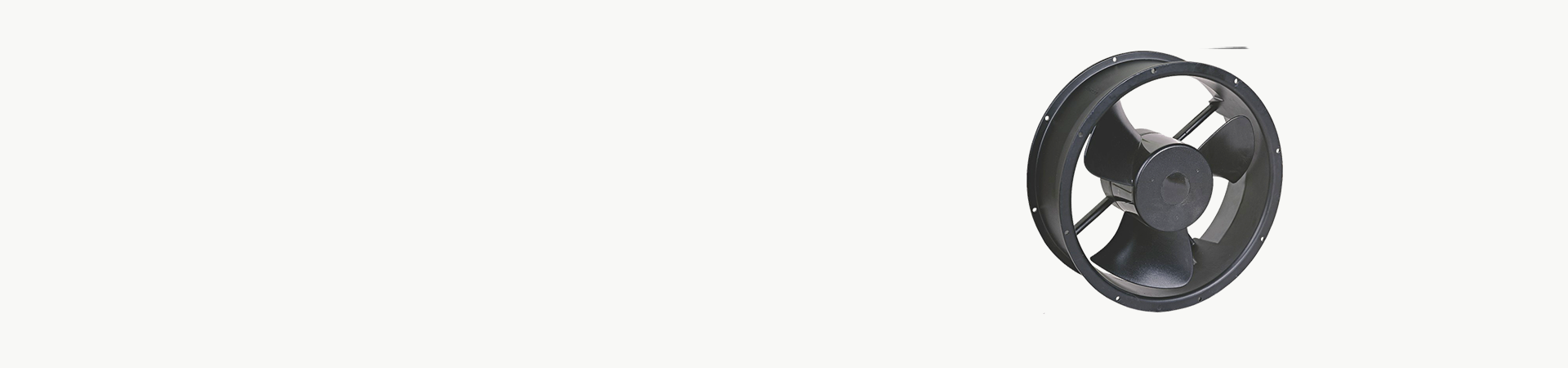

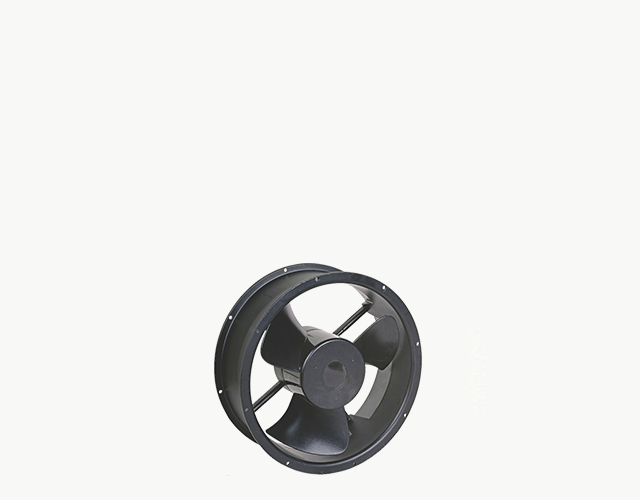

散熱風扇

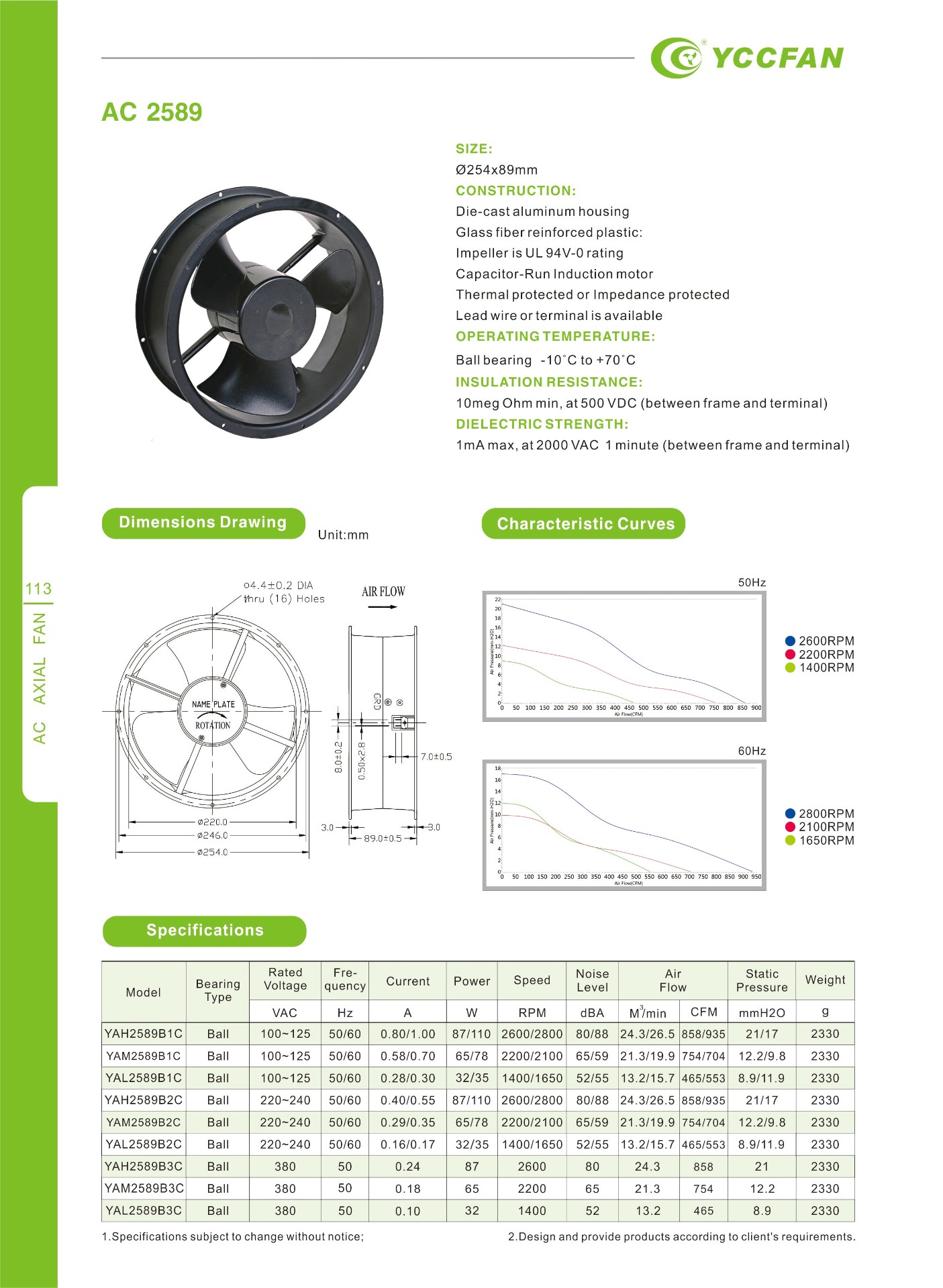

產品描述
Product Description
SIZE:254x89mm
CONSTRUCTION:Die-cast aluminum housingGlass fiber reinforced plastic:Impeller is UL 94V-0 rating Shaded pole motorThermal protected or Impedance protectedLead wire or terminal is available
OPERATING TEMPERATURE:Ball bearing -10℃to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:1mA max, at 2000 VAC 1minute(between frame and terminal)
尺寸圖
Dimensions Drawing

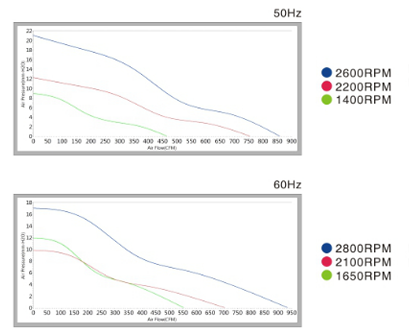

特征曲線
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltago | Fro- quency | urrent | Power | Speed | Noise Level | Air Flow | static Pressure | Weight | |
| VAC | Hz | A | W | RPM | dBA | M3/min | CFM | mmH?O | g | ||
| YAH2589B1C | Ball | 100~125 | 50/60 | 0.80/1.00 | 87/110 | 2600/28oC | 80/88 | 24.3/26.5 | 858/935 | 21/17 | 2330 |
| YAM2589B1C | Ball | 100~125 | 50/60 | 0.58/0.70 | 65/78 | 2200/2100 | 65/59 | 21.3/19.9 | 754/704 | 12.2/9.8 | 2330 |
| YAL2589B1C | Ball | 100~125 | 50/60 | 0.28/0.30 | 32/35 | 1400/1650 | 52/55 | 13.2/15.7 | 465/553 | 8.9/11.9 | 2330 |
| YAH2589B2C | Ball | 220~240 | 50/60 | 0.40/0.55 | 87/110 | 2600/2800 | 80/88 | 24.3/26.5 | 858/935 | 21/17 | 2330 |
| YAM2589B2C | Ball | 220~240 | 50/60 | 0.29/0.35 | 65/78 | 2200/2100 | 65/59 | 21.3/19.9 | 754/704 | 12.2/9.8 | 2330 |
| YAL2589B2C | Ball | 220~240 | 50/60 | 0.16/0.17 | 32/35 | 1400/1650 | 52/55 | 13.2/15.7 | 465/553 | 8.9/11.9 | 2330 |
| YAH2589B3C | Ball | 380 | 50 | 0.24 | 87 | 2600 | 80 | 24.3 | 858 | 21 | 2330 |
| YAM2589B3C | Ball | 380 | 50 | 0.18 | 65 | 2200 | 65 | 21.3 | 754 | 12.2 | 2330 |
| YAL2589B3c | Ball | 380 | 50 | 0.1 | 32 | 1400 | 52 | 13.2 | 465 | 8.9 | 2330 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
