鋁合金及玻璃纖維增強塑料;外框鋁合金,
扇葉PBT UL94V-0等級;罩極式馬達結構;阻抗保護;導線式或插座式;

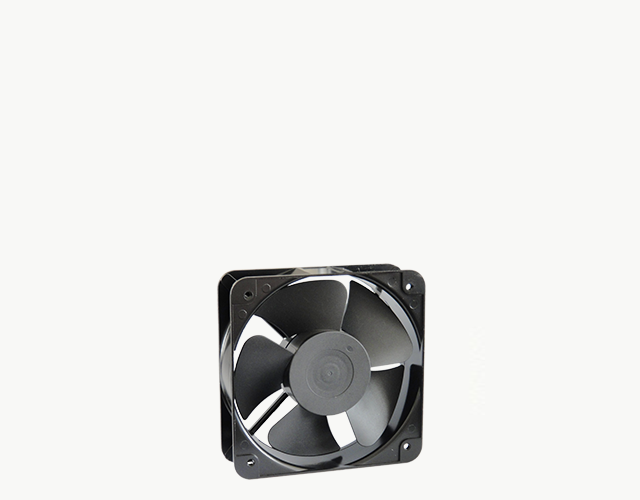

散熱風扇
產品描述
Product Description
SIZE:200x200x60mm
CONSTRUCTION:Die-cast aluminum housingGlass fiber reinforced plastic:Impeller is UL 94V-0 rating Shaded pole motorThermal protected or Impedance protectedLead wire or terminal is available
OPERATING TEMPERATURE:Ball bearing -10℃to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:1mA max, at 2000 VAC 1minute(between frame and terminal)

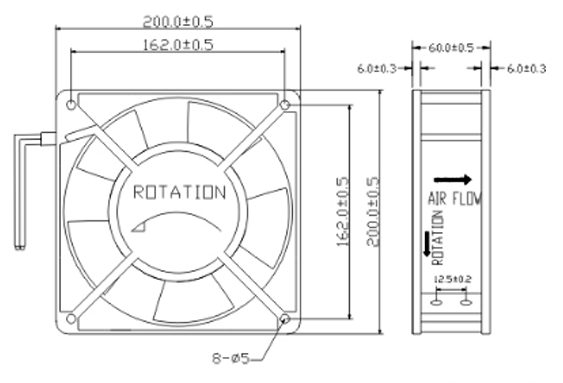

尺寸圖
Dimensions Drawing

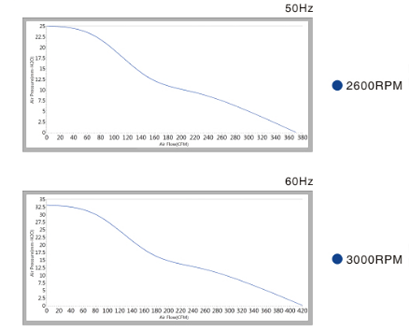

特征曲線
Characteristic Curves
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Fre- quency | urrent | Power | Speed | Noise Level | Air Flow | Static Pressure | Weight | |
| VAC | Hz | A | W | RPM | dBA | M3/min | CFM | mmH?O | g | ||
| YAH2060B1 | Ball | 100~125 | 50/60 | 0.56/0.56 | 50/60 | 2600/3000 | 58/63 | 10.5/11.9 | 370/420 | 25.0/33.0 | 1700 |
| YAH2060B2 | Ball | 220~240 | 50/60 | 0.28/0.28 | 50/60 | 2600/3000 | 58/63 | 10.5/11.9 | 370/420 | 25.0/33.0 | 1700 |
| YAH2060B3 | Ball | 380 | 50 | 0.16 | 50 | 2600 | 58 | 10.5 | 370 | 25 | 1700 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
