鋁合金及玻璃纖維增強塑料;外框鋁合金,
扇葉PBT UL94V-0等級;罩極式馬達結構;阻抗保護;導線式或插座式;

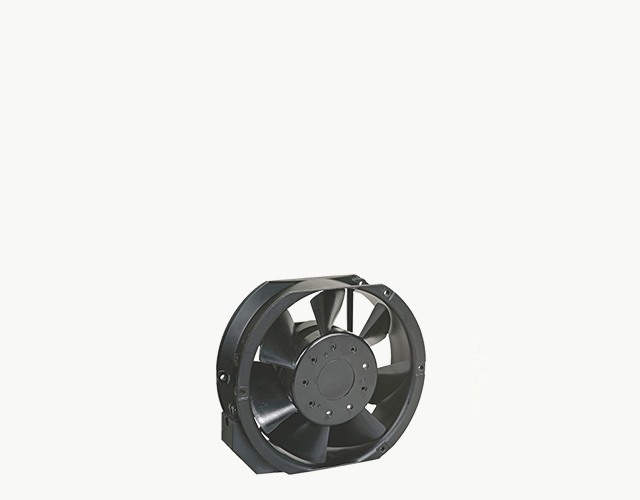

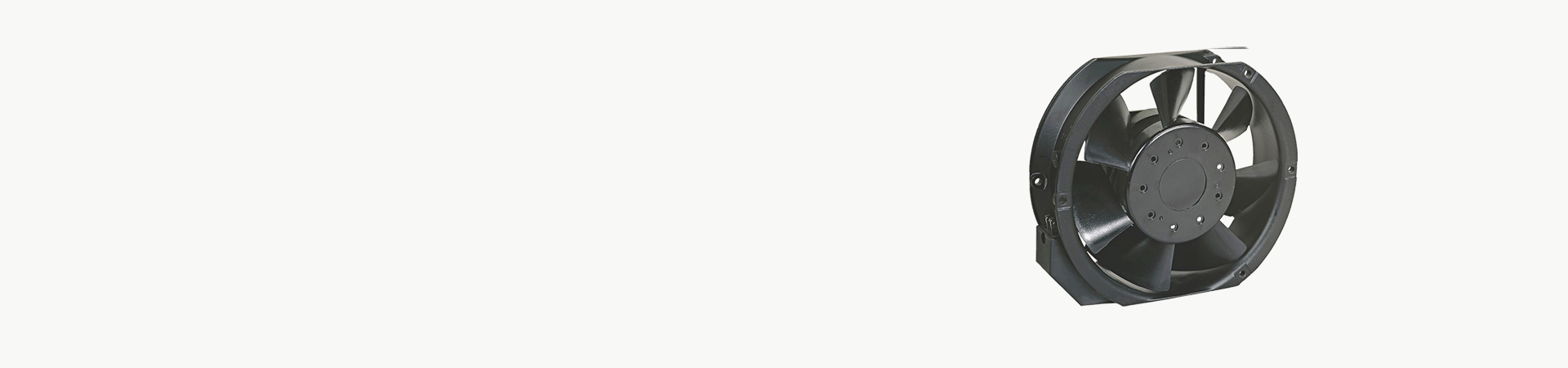

散熱風扇

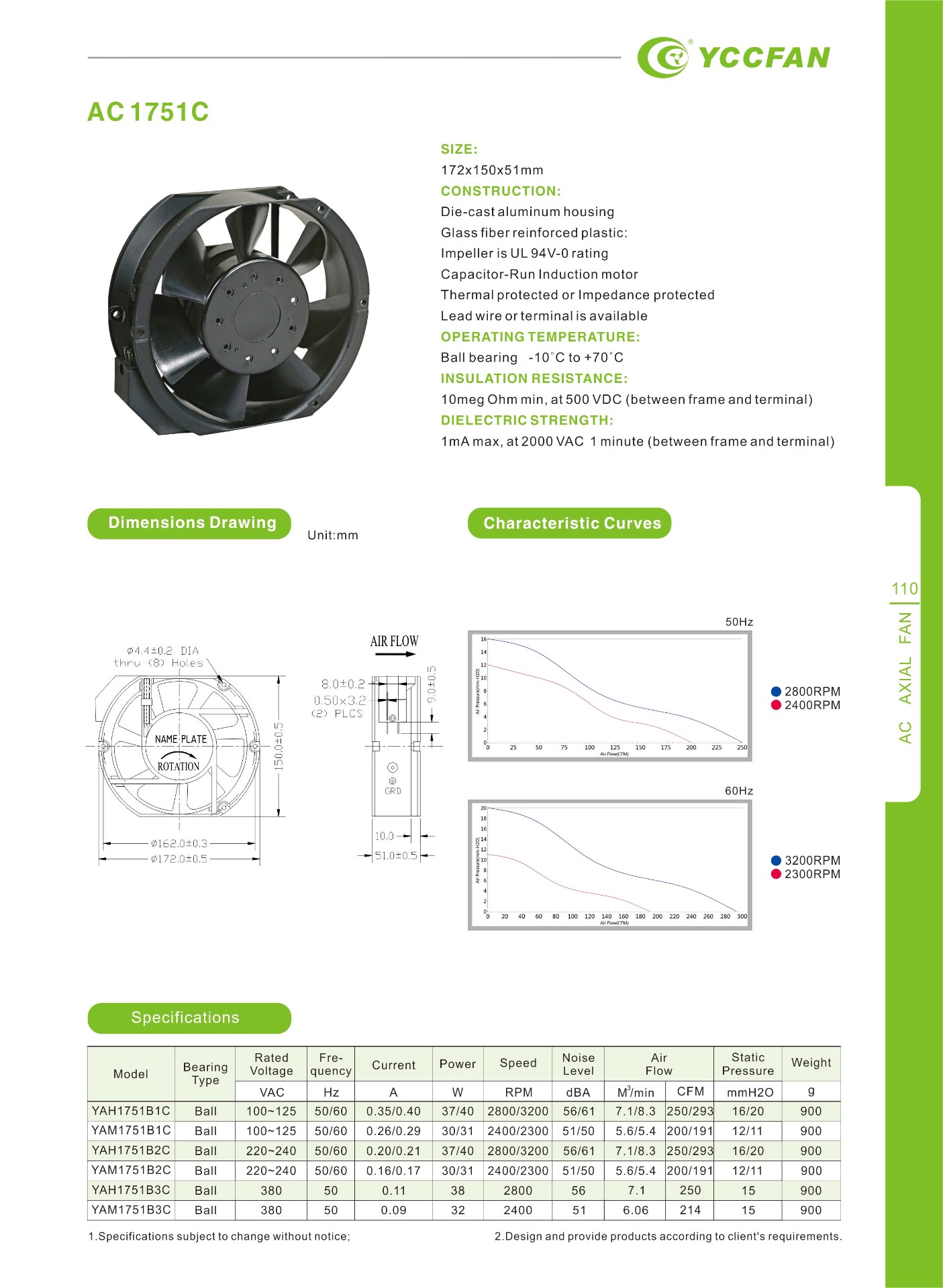

產(chǎn)品描述
Product Description
SIZE:172x150x51mm
CONSTRUCTION:Die-cast aluminum housingGlass fiber reinforced plastic:Impeller is UL 94V-0 rating Shaded pole motorThermal protected or Impedance protectedLead wire or terminal is available
OPERATING TEMPERATURE:Ball bearing -10℃to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:1mA max, at 2000 VAC 1minute(between frame and terminal)

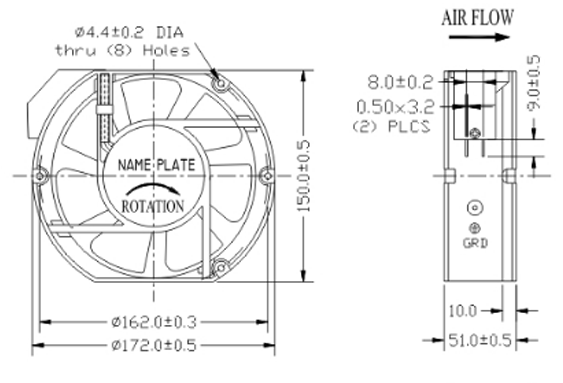

尺寸圖
Dimensions Drawing

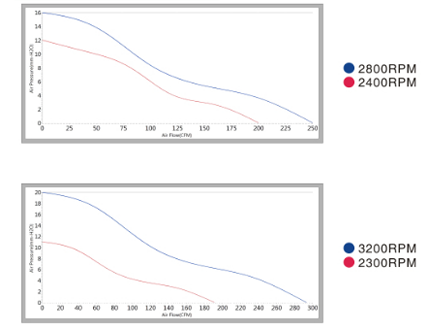

特征曲線
Characteristic Curves
規(guī)格參數(shù)
Specifications
| Model | Bearing Type | Rated Voltage | Fre- quency | urrent | Power | Speed | Noise Level | Air Flow | Static Pressure | Weight | |
| VAC | Hz | A | W | RPM | dBA | M3/min | CFM | mmH?O | g | ||
| YAH1751B1C | Ball | 100~125 | 50/60 | 0.35/0.40 | 37/40 | 2800/3200 | 56/61 | 7.1/8.3 | 250/293 | 16/20 | 900 |
| YAM1751B1C | Ball | 100~125 | 50/60 | 0.26/0.29 | 30/31 | 2400/2300 | 51/50 | 5.6/5.4 | 200/191 | 12/11 | 900 |
| YAH1751B2C | Ball | 220~240 | 50/60 | 0.20/0.21 | 37/40 | 2800/3200 | 56/61 | 7.1/8.3 | 250/293 | 16/20 | 900 |
| YAM1751B2C | Ball | 220~240 | 50/60 | 0.16/0.17 | 30/31 | 2400/2300 | 51/50 | 5.6/5.4 | 200/191 | 12/11 | 900 |
| YAH1751B3C | Ball | 380 | 50 | 0.11 | 38 | 2800 | 56 | 7.1 | 250 | 15 | 900 |
| YAM1751B3C | Ball | 380 | 50 | 0.09 | 32 | 2400 | 51 | 6.06 | 214 | 15 | 900 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
