材料：玻璃纖維增強塑料;框葉PBT UL 94V-0等級；不銹鋼蓋板

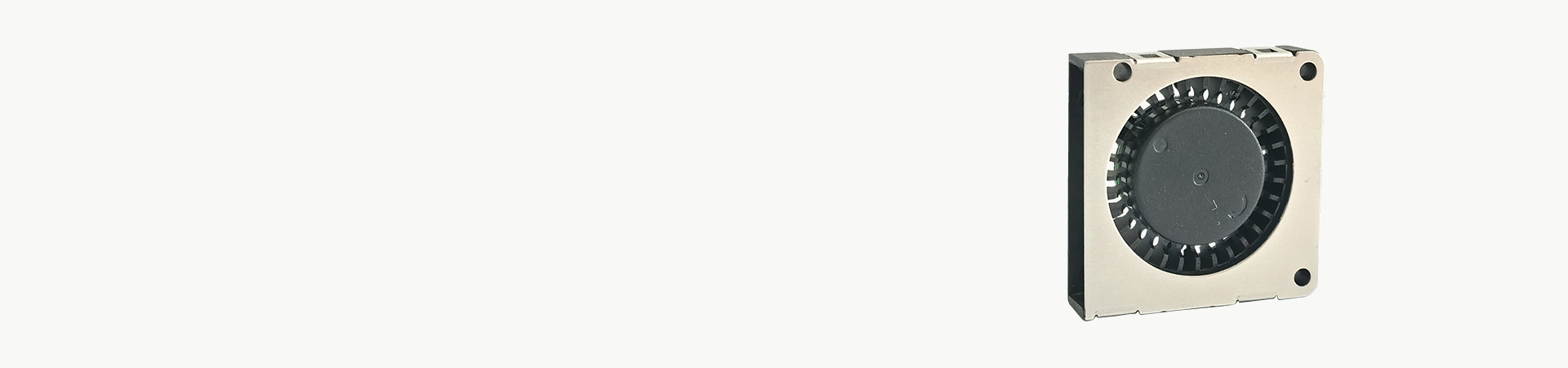

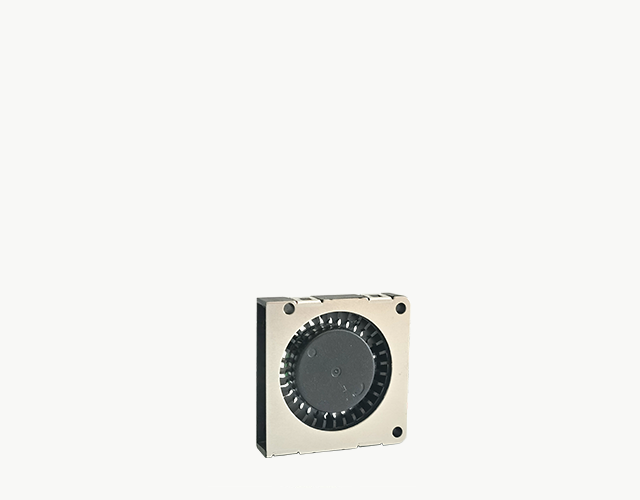

微型鼓風機
產品描述
Product Description
SIZE:30x30x7mm
CONSTRUCTION:Glass Fiber reinforced plastic; Impeller and housing PBT are UL 94V-0 rating Cover is stainless steel
OPERATING TEMPERATURE:CycleSeal bearing -10℃ to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing
特征曲線
Characteristic Curves
規格參數
Specifications
| SIZE (mm) | MODEL | Bearing(X) | Voltage | Testing Current | SPEED (RPM) | AIR FLOW (CFM) | PRESSURE (mmAq) | NOISE (dBA) | W (g) |
| B3007 | YBH3007C05 | C | 5 | 0.22 | 10000 | 1.38 | 9.99 | 32.71 | 9.6 |
| YBM3007C05 | 0.15 | 8000 | 1.10 | 6.39 | 26.30 | 9.6 | |||
| YBL3007C05 | 0.08 | 6000 | 0.80 | 3.62 | 17.83 | 9.6 | |||
| YBH3007C12 | 12 | 0.12 | 10000 | 1.38 | 9.99 | 32.71 | 9.6 | ||
| YBM3007C12 | 0.08 | 8000 | 1.10 | 6.39 | 26.30 | 9.6 | |||
| YBL3007C12 | 0.05 | 6000 | 0.80 | 3.62 | 17.83 | 9.6 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
