鋁合金及玻璃纖維增強塑料;外框鋁合金,
扇葉PBT UL94V-0等級;罩極式馬達結構;阻抗保護;導線式或插座式;
散熱風扇

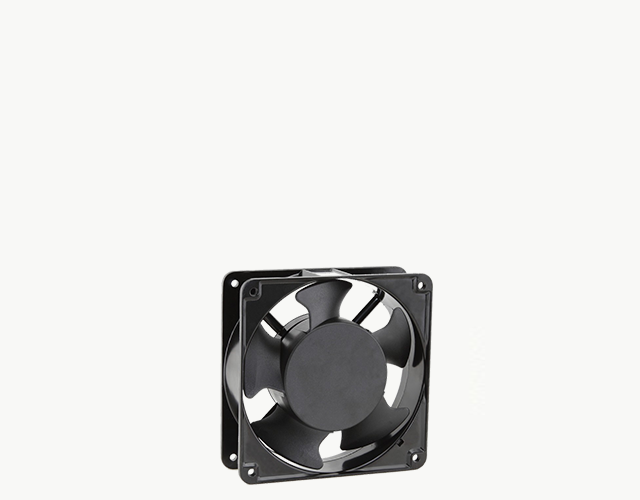

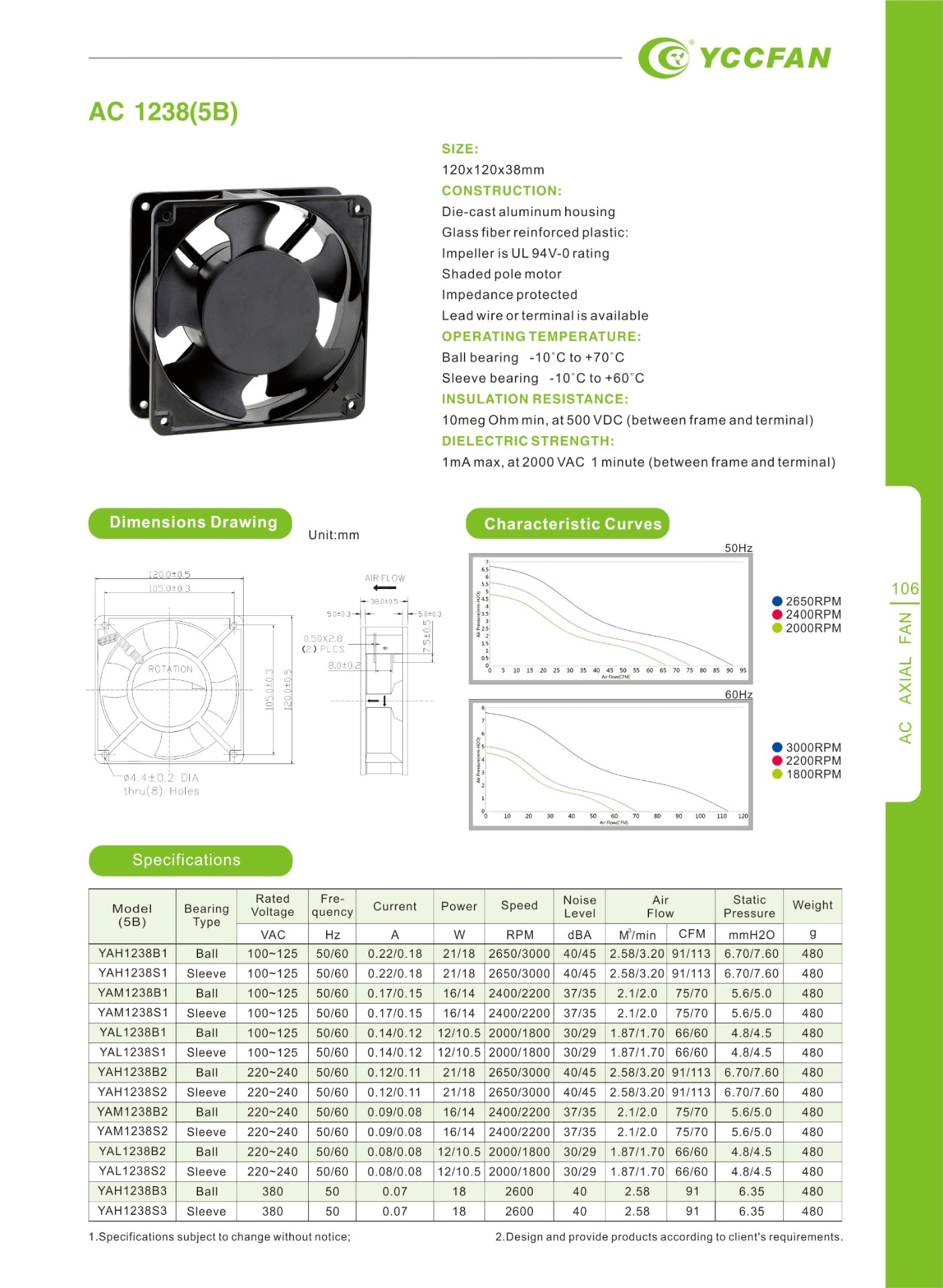

產品描述
Product Description
SIZE:120x120x38mm
CONSTRUCTION:Die-cast aluminum housingGlass fiber reinforced plastic:Impeller is UL 94V-0 rating Shaded pole motorThermal protected or Impedance protectedLead wire or terminal is available
OPERATING TEMPERATURE:Ball bearing -10℃to +70℃;Sleeve bearing -10℃ to +60℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:1mA max, at 2000 VAC 1minute(between frame and terminal)
尺寸圖

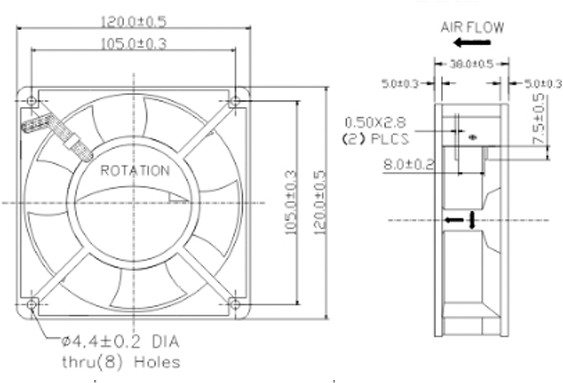

Dimensions Drawing
特征曲線

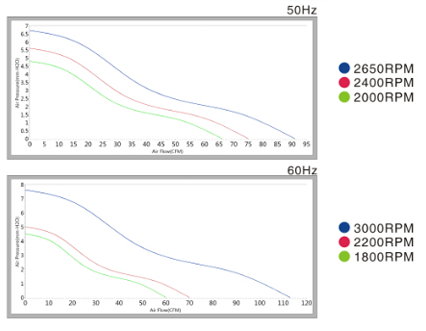

Characteristic Curves
規格參數
Specifications
| Model (5B) | Bearing Type | Rated Voltage | Fre- quency | urrent | Power | Speed | Noise Level | Air Flow | Static Pressure | Weight | |
| VAC | Hz | A | W | RPM | dBA | M3/min | CFM | mmH?O | g | ||
| YAH1238B1 | Ball | 100~125 | 50/60 | 0.22/0.18 | 21/18 | 2650/3000 | 40/45 | 2.58/3.20 | 91/113 | 6.70/7.60 | 480 |
| YAH1238S1 | Sleeve | 100~125 | 50/60 | 0.22/0.18 | 21/18 | 2650/3000 | 40/45 | 2.58/3.20 | 91/113 | 6.70/7.60 | 480 |
| YAM1238B1 | Ball | 100~125 | 50/60 | 0.17/0.15 | 16/14 | 2400/2200 | 37/35 | 2.1/2.0 | 75/70 | 5.6/5.0 | 480 |
| YAM1238S1 | sleeve | 100~125 | 50/60 | 0.17/0.15 | 16/14 | 2400/2200 | 37/35 | 2.1/2.0 | 75/70 | 5.6/5.0 | 480 |
| YAL1238B1 | Ball | 100~125 | 50/60 | 0.14/0.12 | 12/10.5 | 2000/1800 | 30/29 | 1.87/1.70 | 66/60 | 4.8/4.5 | 480 |
| YAL1238S1 | sleeve | 100~125 | 50/60 | 0.14/0.12 | 12/10.5 | 2000/1800 | 30/29 | 1.87/1.70 | 66/60 | 4.8/4.5 | 480 |
| YAH1238B2 | Ball | 220~240 | 50/60 | 0.12/0.11 | 21/18 | 2650/3000 | 40/45 | 2.58/3.20 | 91/113 | 6.70/7.60 | 480 |
| YAH1238S2 | sleeve | 220~240 | 50/60 | 0.12/0.11 | 21/18 | 2650/3000 | 40/45 | 2.58/3.20 | 91/113 | 6.70/7.60 | 480 |
| YAM1238B2 | Ball | 220~240 | 50/60 | 0.09/0.08 | 16/14 | 2400/2200 | 37/35 | 2.1/2.0 | 75/70 | 5.6/5.0 | 480 |
| YAM1238S2 | sleeve | 220~240 | 50/60 | 0.09/0.08 | 16/14 | 2400/2200 | 37/35 | 2.1/2.0 | 75/70 | 5.6/5.0 | 480 |
| YAL1238B2 | Ball | 220~240 | 50/60 | 0.08/0.08 | 12/10.5 | 2000/1800 | 30/29 | 1.87/1.70 | 66/60 | 4.8/4.5 | 480 |
| YAL1238S2 | sleeve | 220~240 | 50/60 | o.08/0.08 | 12/10.5 | 2000/1800 | 30/29 | 1.87/1.70 | 66/60 | 4.8/4.5 | 480 |
| YAH1238B3 | Ball | 380 | 50 | 0.07 | 18 | 2600 | 40 | 2.58 | 91 | 6.35 | 480 |
| YAH1238s3 | sleeve | 380 | 50 | 0.07 | 18 | 2600 | 40 | 2.58 | 91 | 6.35 | 480 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
