玻璃纖維增強塑料;框葉PBT UL94V-0等級
散熱風扇
pcbanner(1).png "詳情頁pcbanner.png")
產品描述
Product Description
SIZE:172x150x51mm
CONSTRUCTION:Die-cast aluminum housing Glass Fiber reinforced plastic; Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:1mA max, at 2000 VAC 1 minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection

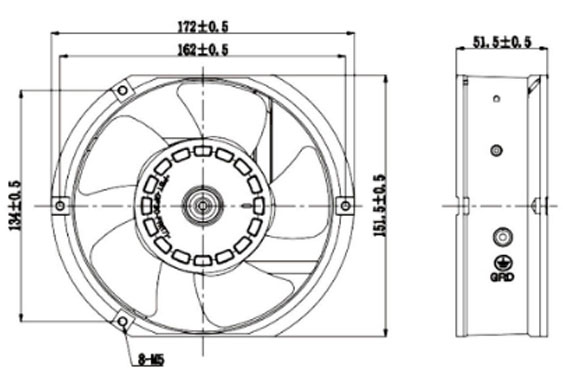

尺寸圖
Dimensions Drawing
.jpg "23 (2).jpg")

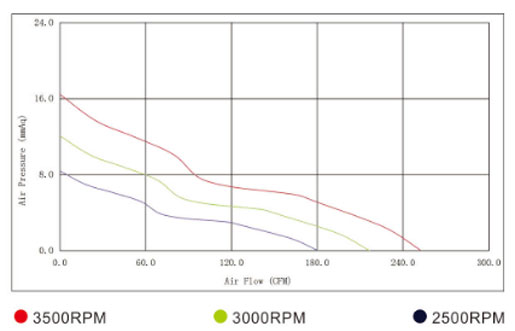

特征曲線
Characteristic Curves
.jpg "23 (1).jpg")
規格參數
Specifications
| Model | Bearing Type | Rated Voltage | Power | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VAC | W | RPM | CFM | mmH?O | dBA | g | ||
| YEH1751B2F | B | 110/220 | 25 | 3500 | 252.7 | 16.43 | 53.3 | 663 |
| YEM1751B2F | B | 110/220 | 20 | 3000 | 216.6 | 12.06 | 49.6 | 663 |
| YEL1751B2F | B | 110/220 | 15 | 2500 | 180.5 | 8.38 | 46 | 663 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
