加2000VAC/6Hz一分鐘, 漏電流小于1mA (在外框與黃子之聞)
散熱風(fēng)扇
產(chǎn)品描述
Product Description
SIZE:150x150x50mm
CONSTRUCTION:Die-cast aluminum housingGlass fiber reinforced plastic:Impeller is UL 94V-0 rating Shaded pole motorThermal protected or Impedance protectedLead wire or terminal is available
OPERATING TEMPERATURE:Ball bearing -10℃to +70℃;Sleeve bearing -10℃ to +60℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:1mA max, at 2000 VAC 1minute(between frame and terminal)

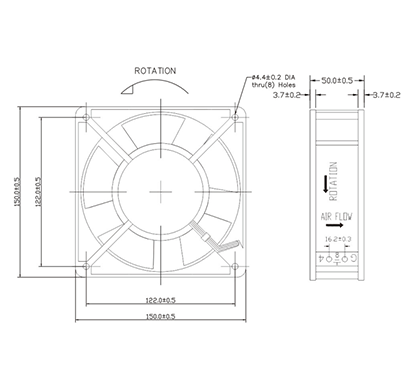

尺寸圖
Dimensions Drawing

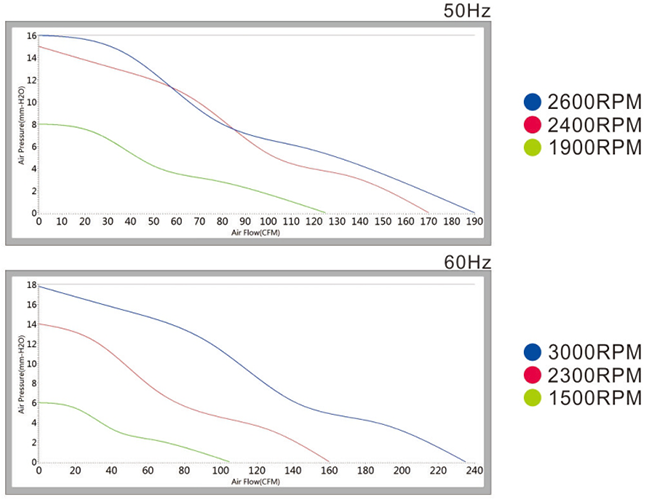

特征曲線
Characteristic Curves
規(guī)格參數(shù)
Specifications
| Model | Bearing Type | Rated voltage | Fre- quency | urrent | Power | Speed | Noise Level | Air Flow | Static Pressure | Weight | |
| VAC | Hz | A | w | RPM | dBA | Mlmin | CFM | mmH2O | g | ||
| YAH1550B1 | Ball | 100~125 | 50/60 | 0.50/0.45 | 37/36 | 2600/3000 | 45/50 | 5.37/6.65 | 190/235 | 16.0/17.8 | 880 |
| YAH1550S1 | Sleeve | 100~125 | 50/60 | 0.50/0.45 | 37/36 | 2600/3000 | 45/50 | 5.3716.65 | 190/235 | 16.0/17.8 | 880 |
| YAM1550B1 | Ball | 100~125 | 50/60 | 0.41/0.39 | 32/30 | 2400/2300 | 41/40 | 4.5/4.0 | 170/160 | 15/14 | 880 |
| YAM1550S1 | Sleeve | 100~125 | 50/60 | 0.41/0.39 | 32/30 | 2400/2300 | 41/40 | 4.5/4.0 | 170/160 | 15/14 | 880 |
| YAL1550B1 | Ball | 100~125 | 50/60 | 0.35/0.35 | 26/25 | 1900/1500 | 32/30 | 3.5/3.0 | 125/105 | 8/6 | 880 |
| YAL1550S1 | Sleeve | 100~125 | 50/60 | 0.35/0.35 | 26/25 | 1900/1500 | 32/30 | 3.5/3.0 | 125/105 | 8/6 | 880 |
| YAH1550B2 | Ball | 220~240 | 50/60 | 0.22/0.21 | 34/33 | 2600/3000 | 45/50 | 5.37/6.65 | 190/235 | 16.0/17.8 | 880 |
| YAH1550S2 | Sleeve | 220~240 | 50/60 | 0.22/0.21 | 34/33 | 2600/3000 | 45/50 | 5.37/6.65 | 190/235 | 16.0/17.8 | 880 |
| YAM1550B2 | Ball | 220~240 | 50/60 | 0.19/0.18 | 30/28 | 2400/2300 | 41/40 | 4.5/4.0 | 170/160 | 15/14 | 880 |
| YAM1550S2 | Sleeve | 220~240 | 50/60 | 0.19/0.18 | 30/28 | 2400/2300 | 41/40 | 4.5/4.0 | 170/160 | 15/14 | 880 |
| YAL1550B2 | Ball | 220~240 | 50/60 | 0.16/0.16 | 26/25 | 1900/1500 | 32/30 | 3.5/3.0 | 125/105 | 8/6 | 880 |
| YAL1550S2 | Sleeve | 220~240 | 50/60 | 0.16/0.16 | 26/25 | 1900/1500 | 32/30 | 3.5/3.0 | 125/105 | 8/6 | 880 |
| YAH1550B3 | Ball | 380 | 50 | 0.11 | 34 | 2600 | 45 | 5.37 | 190 | 15 | 880 |
| YAH1550S3 | Sleeve | 380 | 50 | 0.11 | 34 | 2600 | 45 | 5.37 | 190 | 15 | 880 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
