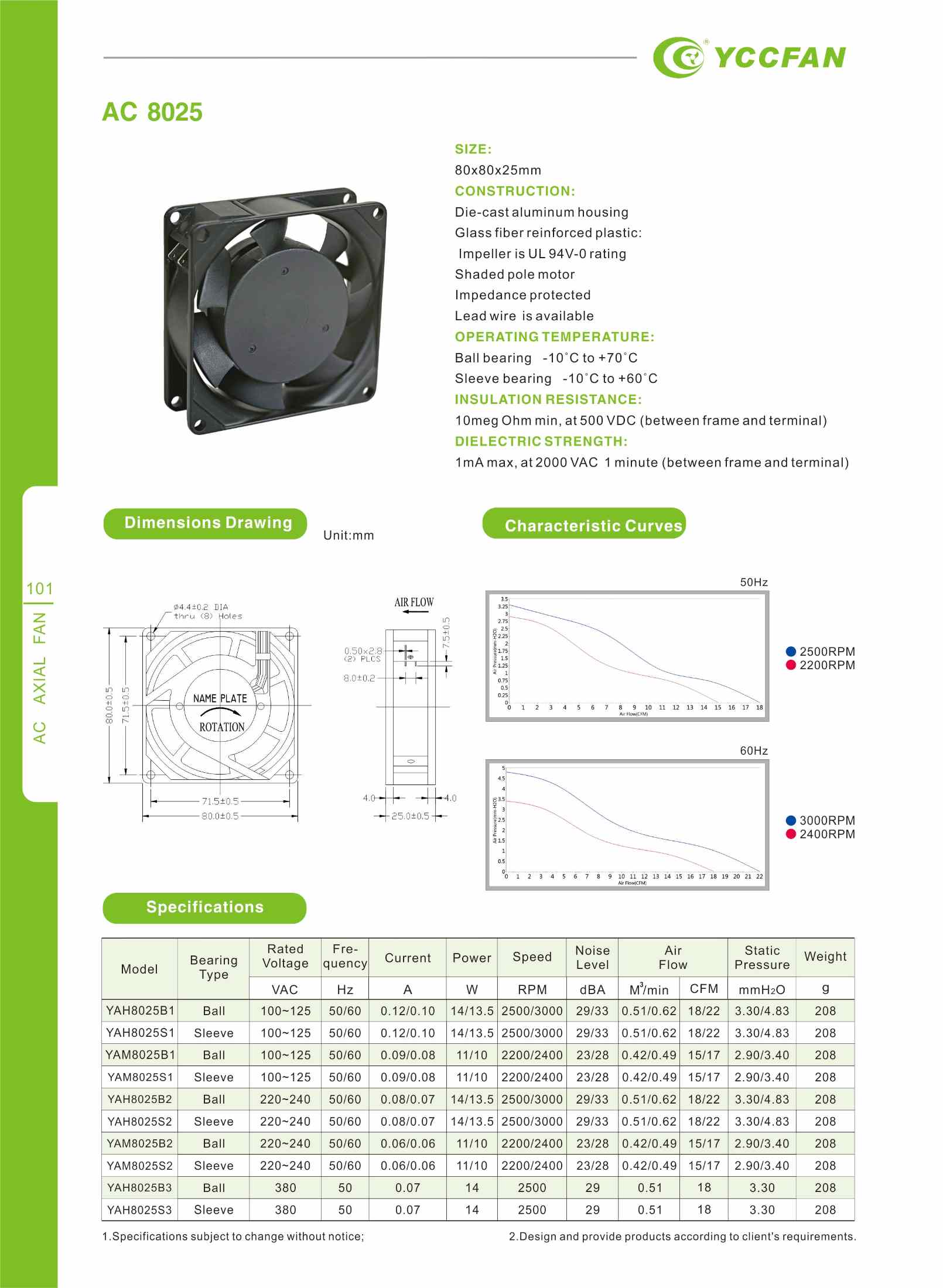

PRODUCT
鋁合金及玻璃纖維增強塑料;外框鋁合金，扇葉PBT UL94V-0等級
散熱風(fēng)扇
產(chǎn)品描述
Product Description
SIZE:80x80x25mm
CONSTRUCTION:Die-cast aluminum housingGlass fiber reinforced plastic:Impeller is UL 94V-0 rating Shaded pole motorThermal protected or Impedance protectedLead wire or terminal is available
OPERATING TEMPERATURE:Ball bearing -10℃to +70℃;Sleeve bearing -10℃ to +60℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:1mA max, at 2000 VAC 1minute(between frame and terminal)
尺寸圖
Dimensions Drawing
特征曲線
Characteristic Curves
規(guī)格參數(shù)
Specifications
| Model | Bearing Type | Rated Voltage | Fre- quency | urrent | Power | Speed | Noise Level | Air Flow | static Pressure | Weight | |
| VAC | Hz | A | w | RPM | dBA | min | CFM | mmHzO | g | ||
| YAH8025B1 | Ball | 100~125 | 50/60 | 0.12/0.10 | 14/13.5 | 2500/3000 | 29/33 | 0.51/0.62 | 18/22 | 3.30/4.83 | 208 |
| YAH8025S1 | sleeve | 100~125 | 50/60 | 0.12/0.10 | 14/13.5 | 2500/3000 | 29/33 | 0.51/0.62 | 18/22 | 3.30/4.83 | 208 |
| YAM8025B1 | Ball | 100~125 | 50/60 | 0.09/0.08 | 11/10 | 2200/2400 | 23/28 | 0.42/0.49 | 15/17 | 2.90/3.40 | 208 |
| YAM8025S1 | sleeve | 100~125 | 50/60 | 0.09/0.08 | 11/10 | 2200/2400 | 23/28 | 0.42/0.49 | 15/17 | 2.90/3.40 | 208 |
| YAH8025B2 | Ball | 220~240 | 50/60 | 0.08/0.07 | 14/13.5 | 2500/3000 | 29/33 | 0.51/0.62 | 18/22 | 3.3014.83 | 208 |
| YAH8025S2 | Sleeve | 220~240 | 50/60 | 0.08/0.07 | 14/13.5 | 2500/3000 | 29/33 | 0.51/0.62 | 18/22 | 3.3014.83 | 208 |
| YAM8025B2 | Ball | 220~240 | 50/60 | 0.06/0.06 | 11/10 | 2200/2400 | 23/28 | 0.4210.49 | 15/17 | 2.90/3.40 | 208 |
| YAM8025S2 | Sleeve | 220~240 | 50/60 | 0.06/0.06 | 11/10 | 2200/2400 | 23/28 | 0.42/0.49 | 15/17 | 2.90/3.40 | 208 |
| YAH8025B3 | Ball | 380 | 50 | 0.07 | 14 | 2500 | 29 | 0.51 | 18 | 3.3 | 208 |
| YAH8025S3 | Sleeve | 380 | 50 | 0.07 | 14 | 2500 | 29 | 0.51 | 18 | 3.3 | 208 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
