產品描述

Product Description

SIZE:20x20x6mm

CONSTRUCTION:Glass Fiber reinforced plastic; Impeller and housing PBT are UL 94V-0 rating Cover is stainless steel

OPERATING TEMPERATURE:CycleSeal bearing -10℃ to +70℃

INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)

DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)

FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection

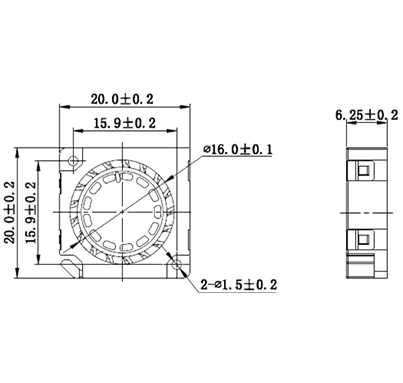

尺寸圖

Dimensions Drawing

特征曲線

Characteristic Curves

 規格參數

Specifications



SIZE
(mm)		MODELBearing(X)VoltageTesting
Current		SPEED
(RPM)		AIR FLOW
(CFM)		PRESSURE
(mmAq)		NOISE
(dBA)		W
(g)
B8020YBH8020X12C or B120.36 400017.23 23.88 40.80 54
YBM8020X120.24 300012.99 11.84 30.60 54
YBL8020X120.10 20008.80 4.56 20.40 54
YBH8020X24240.20 400017.23 23.88 40.80 54
YBM8020X240.13 300012.99 11.84 30.60 54
YBL8020X240.06 20008.80 4.56 20.40 54



1.Specifications subject to change without notiec;

2.Design and provide products according to client’s requirements.

散熱風扇下載資料

B8020下載資料
