PRODUCT
鋁合金及玻璃纖維增強塑料;外框鋁合金，扇葉PBT UL94V-0等級
散熱風扇
產品描述
Product Description
SIZE:80x80x25mm
CONSTRUCTION:Die-cast aluminum housingGlass fiber reinforced plastic:Impeller is UL 94V-0 rating Shaded pole motorThermal protected or Impedance protectedLead wire or terminal is available
OPERATING TEMPERATURE:Ball bearing -10℃to +70℃;Sleeve bearing -10℃ to +60℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:1mA max, at 2000 VAC 1minute(between frame and terminal)

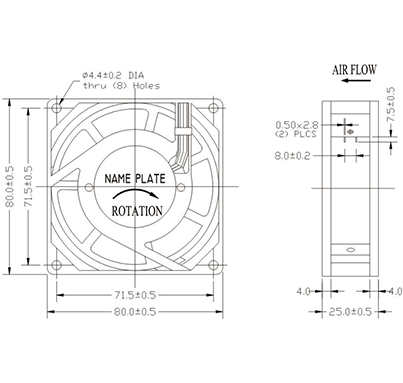

尺寸圖
Dimensions Drawing
特征曲線
Characteristic Curves
規格參數
Specifications
| SIZE (mm) | MODEL | Bearing(X) | Voltage | Testing Current | SPEED (RPM) | AIR FLOW (CFM) | PRESSURE (mmAq) | NOISE (dBA) | W (g) |
| 9225G | YDD9225B12G | B | 12 | 1.40 | 7000 | 124.27 | 27.23 | 58.50 | 138 |
| YDH9225B12G | 0.88 | 6000 | 106.54 | 20.24 | 54.50 | 138 | |||
| YDM9225B12G | 0.50 | 5000 | 88.09 | 14.12 | 50.20 | 138 | |||
| YDL9225B12G | 0.26 | 4000 | 70.17 | 9.33 | 43.80 | 138 | |||
| YDD9225B24G | 24 | 0.70 | 7000 | 124.27 | 27.23 | 58.50 | 138 | ||
| YDH9225B24G | 0.44 | 6000 | 106.54 | 20.24 | 54.50 | 138 | |||
| YDM9225B24G | 0.25 | 5000 | 88.09 | 14.12 | 50.20 | 138 | |||
| YDL9225B24G | 0.13 | 4000 | 70.17 | 9.33 | 43.80 | 138 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
