玻璃纖維增強塑料;框葉PBT UL 94V-0等級

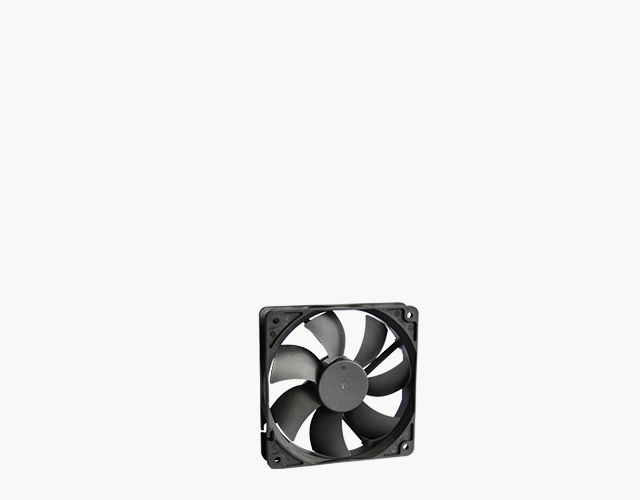

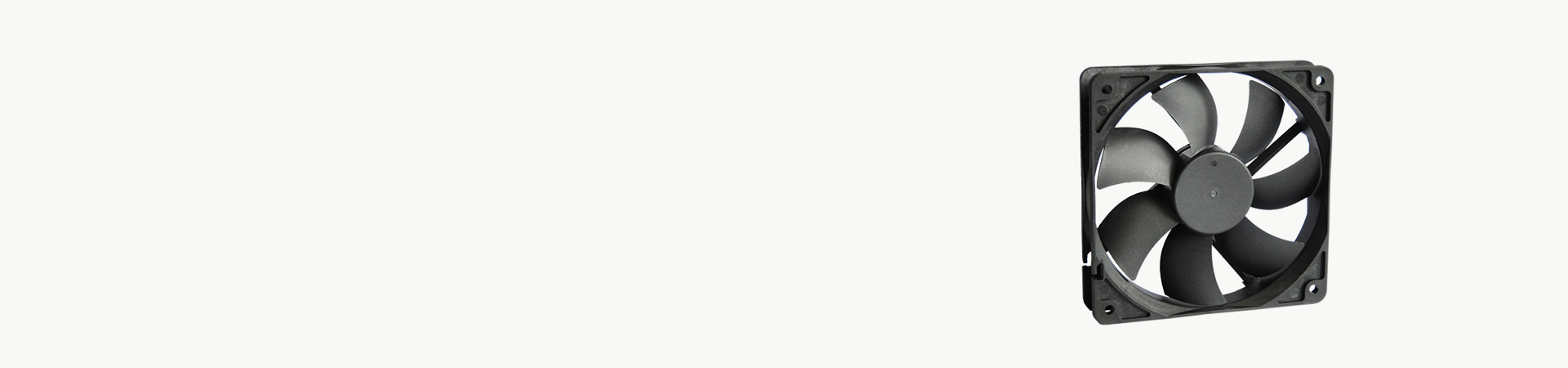

散熱風扇
產(chǎn)品描述
Product Description
SIZE:120x120x25mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;CycleSeal bearing -10℃ to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing
特征曲線

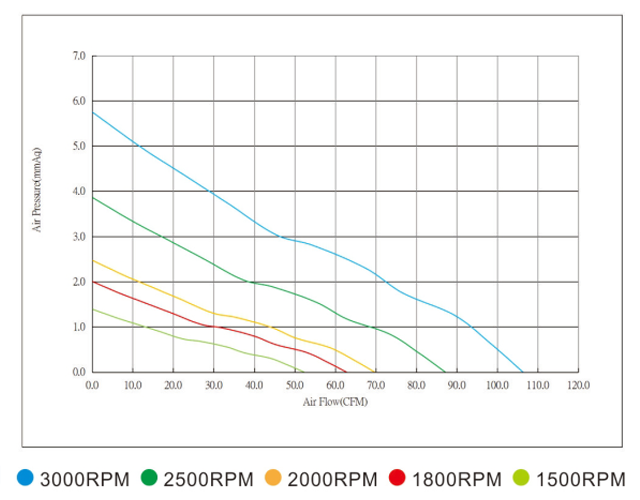

Characteristic Curves
規(guī)格參數(shù)
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH?O | dBA | g | ||
| YDH1225X05 | C or S or B | 5 | 0.30 | 2000 | 69.74 | 2.47 | 35.00 | 135 |
| YDM1225X05 | C or S or B | 5 | 0.22 | 1800 | 62.77 | 2.00 | 32.00 | 135 |
| YDL1225X05 | C or S or B | 5 | 0.12 | 1500 | 52.31 | 1.39 | 28.00 | 135 |
| YDH1225X12 | C or S or B | 12 | 0.27 | 2500 | 87.18 | 3.86 | 39.00 | 135 |
| YDM1225X12 | C or S or B | 12 | 0.11 | 2000 | 69.74 | 2.47 | 35.00 | 135 |
| YDL1225X12 | C or S or B | 12 | 0.06 | 1500 | 52.31 | 1.39 | 28.00 | 135 |
| YDH1225X18 | C or S or B | 18 | 0.18 | 2500 | 87.18 | 3.86 | 39.00 | 135 |
| YDM1225X18 | C or S or B | 18 | 0.07 | 2000 | 69.74 | 2.47 | 35.00 | 135 |
| YDL1225X18 | C or S or B | 18 | 0.04 | 1500 | 52.31 | 1.39 | 28.00 | 135 |
| YDM1225X24 | C or S or B | 24 | o.20 | 3000 | 106.36 | 5.75 | 47.00 | 135 |
| YDL1225X24 | C or S or B | 24 | 0.11 | 2000 | 69.74 | 2.47 | 35.00 | 135 |
| YDM1225X48 | C or S or B | 48 | 0.12 | 3000 | 106.36 | 5.75 | 47.00 | 135 |
| YDL1225X48 | C or S or B | 48 | 0.08 | 2000 | 69.74 | 2.47 | 35.00 | 135 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
