PRODUCT
玻璃纖維增強塑料;框葉PBT UL 94V-0等級
散熱風扇
產(chǎn)品描述
Product Description
SIZE:120x120x25mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;CycleSeal bearing -10℃ to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing

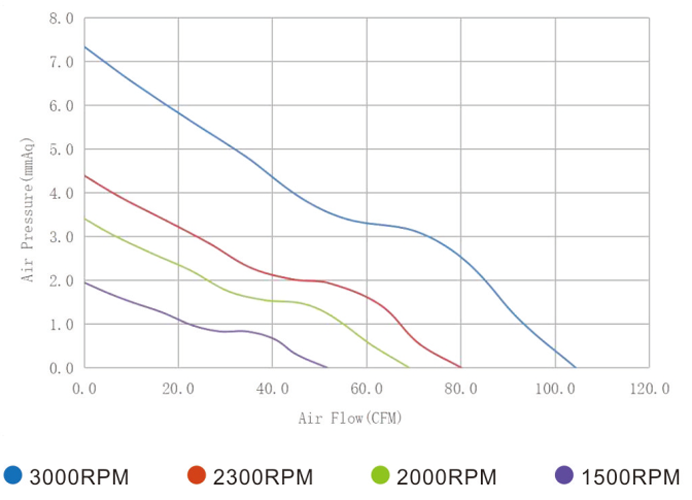

特征曲線
Characteristic Curves
規(guī)格參數(shù)
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH?O | dBA | g | ||
| YDM1225X05G | C or B or S | 5 | 0.42 | 2000 | 69.16 | 3.42 | 34.95 | 139 |
| YDL1225X05G | C or B or S | 5 | 0.19 | 1500 | 51.75 | 1.95 | 26.73 | 139 |
| YDH1225X12G | C or B or S | 12 | 0.61 | 3000 | 104.45 | 7.34 | 45.90 | 139 |
| YDM1225X12G | C or B or S | 12 | 0.28 | 2300 | 80.17 | 4.40 | 38.60 | 139 |
| YDL1225X12G | C or B or S | 12 | 0.08 | 1500 | 51.75 | 1.95 | 26.73 | 139 |
| YDH1225X18G | C or B or S | 18 | 0.41 | 3000 | 104.45 | 7.34 | 45.90 | 139 |
| YDM1225X18G | C or B or S | 18 | 0.19 | 2300 | 80.17 | 4.40 | 38.60 | 139 |
| YDL1225X18G | C or B or S | 18 | 0.05 | 1500 | 51.75 | 1.95 | 26.73 | 139 |
| YDH1225X24G | C or B or S | 24 | 0.25 | 3000 | 104.45 | 7.34 | 45.90 | 139 |
| YDM1225X24G | C or B or S | 24 | 0.11 | 2300 | 80.17 | 4.40 | 38.60 | 139 |
| YDL1225X24G | C or B or S | 24 | 0.04 | 1500 | 51.75 | 1.95 | 26.73 | 139 |
| YDH1225X48G | C or B or S | 48 | 0.13 | 3000 | 104.45 | 7.34 | 45.90 | 139 |
| YDM1225X48G | C or B or S | 48 | 0.06 | 2300 | 80.17 | 4.40 | 38.60 | 139 |
| YDL1225X48G | C or B or S | 48 | 0.03 | 1500 | 51.75 | 1.95 | 26.73 | 139 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
