PRODUCT
玻璃纖維增強塑料;框葉PBT UL 94V-0等級
散熱風扇
產(chǎn)品描述
Product Description
SIZE:120x120x38mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;Sleeve bearing -10℃ to +60℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing

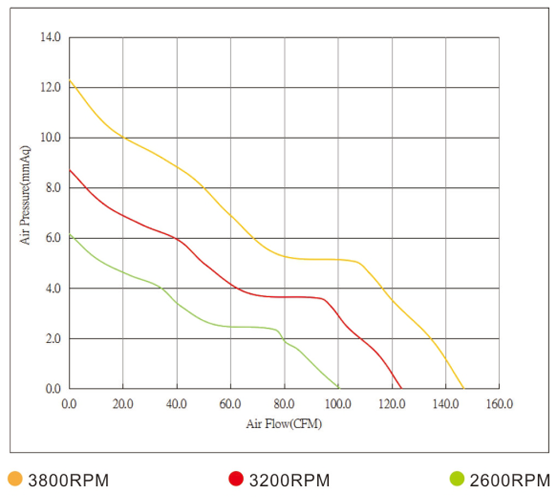

特征曲線
Characteristic Curves
規(guī)格參數(shù)
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH?O | dBA | g | ||
| YDH1238X12 | S or B | 12 | 0.91 | 3800 | 146.90 | 12.31 | 52.96 | 296 |
| YDM1238X12 | S or B | 12 | 0.71 | 3200 | 123.71 | 8.73 | 48.00 | 296 |
| YDL1238X12 | S or B | 12 | 0.40 | 2600 | 100.71 | 6.17 | 43.50 | 296 |
| YDH1238X24 | S or B | 24 | 0.48 | 3800 | 146.90 | 12.31 | 52.96 | 296 |
| YDM1238X24 | S or B | 24 | 0.35 | 3200 | 123.71 | 8.73 | 48.00 | 296 |
| YDL1238X24 | S or B | 24 | 0.18 | 2600 | 100.71 | 6.17 | 43.50 | 296 |
| YDH1238X48 | S or B | 48 | 0.26 | 3800 | 146.71 | 12.31 | 52.96 | 296 |
| YDM1238X48 | S or B | 48 | 0.23 | 3200 | 123.71 | 8.73 | 48.00 | 296 |
| YDL1238X48 | S or B | 48 | 0.09 | 2600 | 100.71 | 6.17 | 43.5 | 296 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
