PRODUCT
玻璃纖維增強塑料;框葉PBT UL 94V-0等級
散熱風扇
產(chǎn)品描述
Product Description
SIZE:140x140x25mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;Sleeve bearing -10℃ to +60℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸圖
Dimensions Drawing

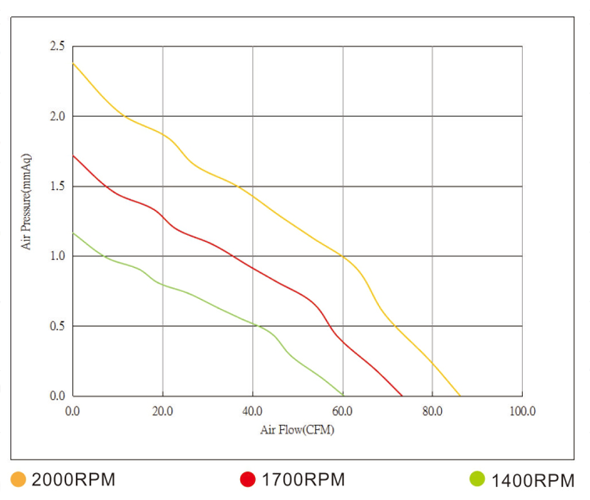

特征曲線
Characteristic Curves
規(guī)格參數(shù)
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH?O | dBA | g | ||
| YDH1425X12 | S or B | 12 | 0.21 | 2000 | 86.20 | 2.38 | 39.31 | 167 |
| YDM1425X12 | S or B | 12 | 0.16 | 1700 | 73.27 | 1.72 | 35.78 | 167 |
| YDL1425X12 | S or B | 12 | 0.08 | 1400 | 60.34 | 1.17 | 31.56 | 167 |
| YDH1425X24 | S or B | 24 | 0.07 | 2000 | 86.20 | 2.38 | 39.31 | 167 |
| YDM1425X24 | S or B | 24 | 0.06 | 1700 | 73.27 | 1.72 | 35.78 | 167 |
| YDL1425X24 | S or B | 24 | 0.05 | 1400 | 60.34 | 1.17 | 31.56 | 167 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
